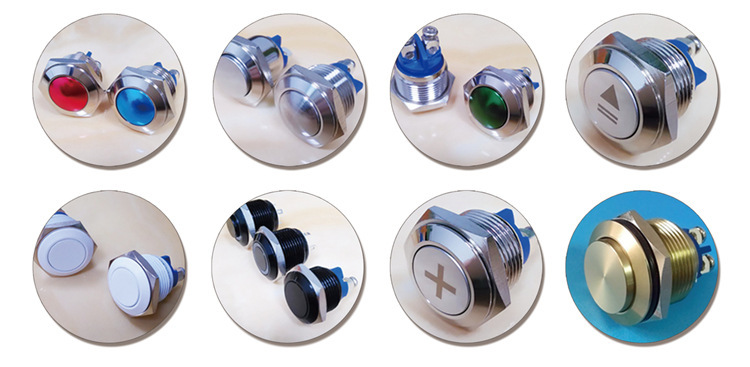

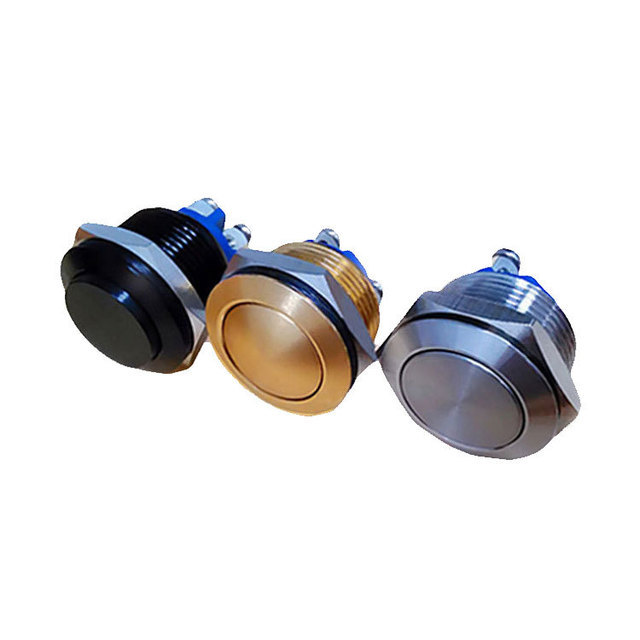

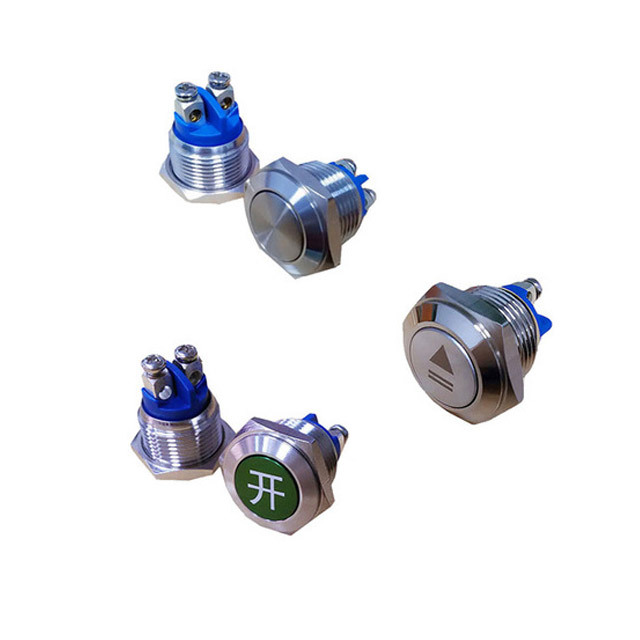

16mm Metal Pushbutton Switches
SPECIFICATIONS
Panel Thickness: Ø16.20mm
Contact Rating: lth 5A/250VAC resistive load 3A/250VAC
Mechanical Life: 200,000 cycles
Electrical Life: 50,000 make-and-break cycles at full load
Torque: 5~14Nm
Travel: About 2.0mm
Operation Pressure: 1.5±1N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.
Dielectric Strength: 2,000 Vrms @sea level.v
Operating Temperature: -20°C to 85°C
Ingress Protection: IP67
MATERIALS
BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy
BASE : PBT.
ACTUATOR : Stainless Steel / Nickel plated brass / Aluminum alloy
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Sillicone.
O-Ring : Sillicone
TERMINAL : Brass,with silver or gold plated.
HEX NUT : Nickel plated brass
