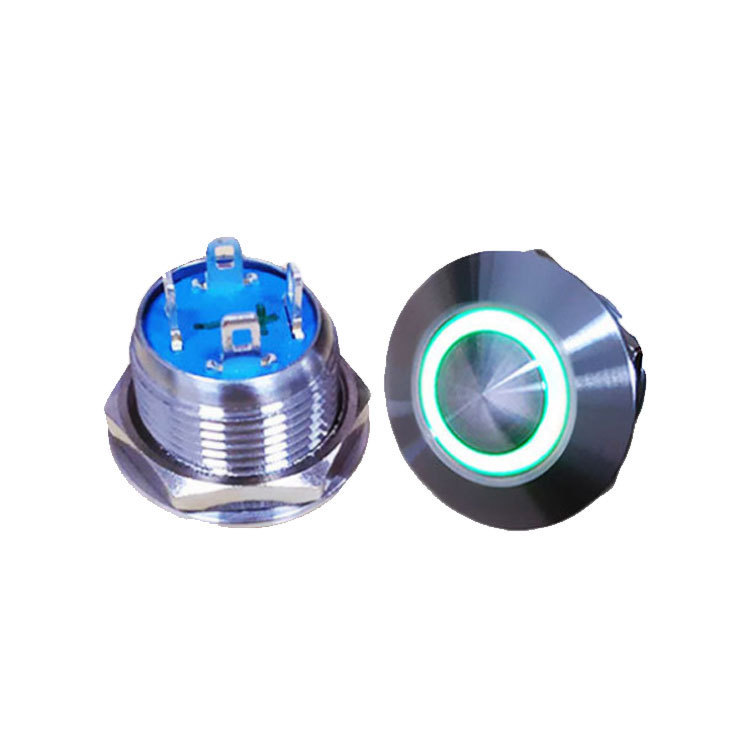

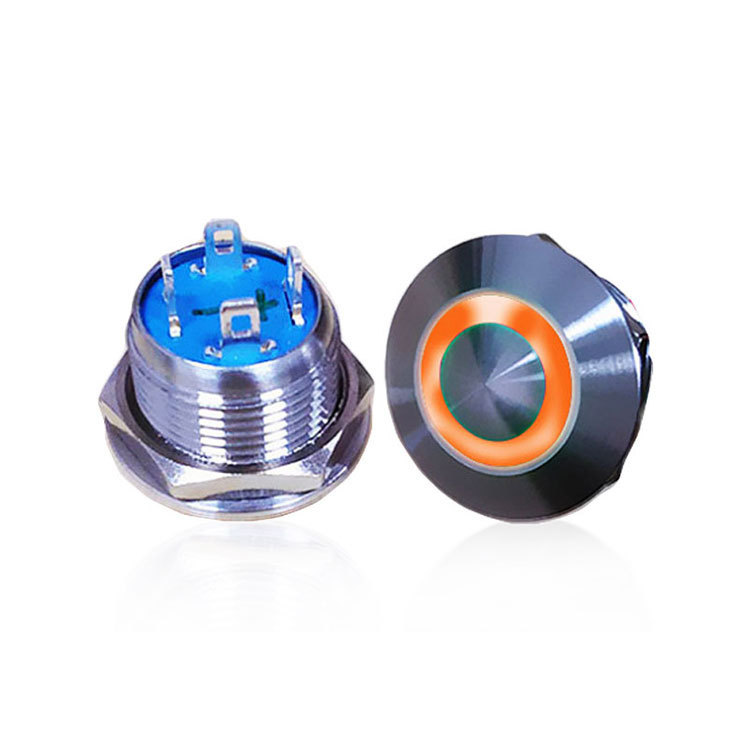

16mm防水轻触金属开关环形发光金属开关双色三色指示灯金属按钮开关
产品编号：16mm
联系人：李贵钟
订购热线：13249962028
邮箱：jiateng@dgjiateng.cn
地址：中国广东东莞市石碣镇横滘伟业街9号401室
点击：
详情规格

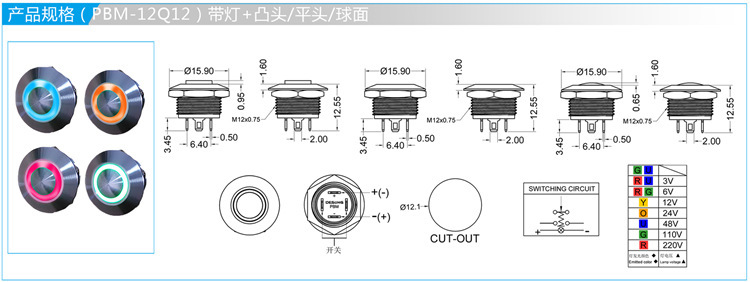

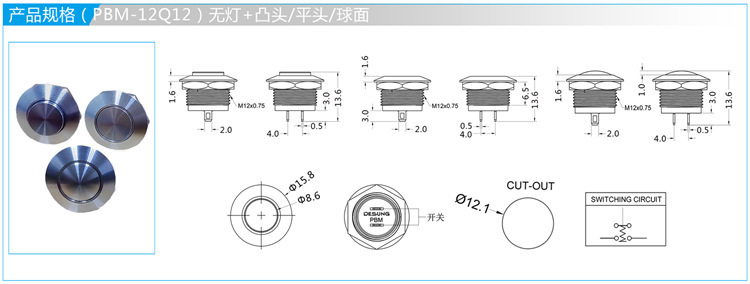

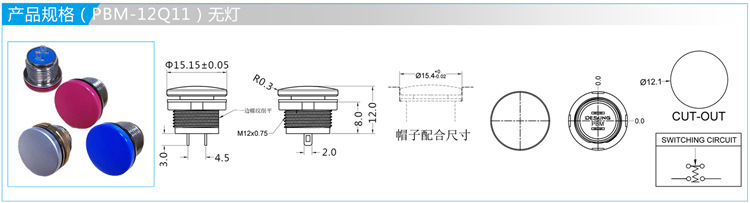

12mm Metal Tact Switches
SPECIFICATIONS
Panel Thickness: Ø12.20mm
Function:Momentary
Contact Rating: 50mA @ 12VDC.
Mechanical Life: 200,000 cycles
Electrical Life: 50,000 cycles make-and-break cycles.
Torque: 1~3Nm
Travel: About 0.3mm
Operation Pressure: About 1.5N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.
Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -20°C to 85°C
Ingress Protection: IP67
RoHS
MATERIALS
BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy
BASE : PBT, PC
ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Sillicone.
O-Ring : Sillicone
TERMINAL : Brass,with silver or gold plated.
HEX NUT : Nickel plated brass

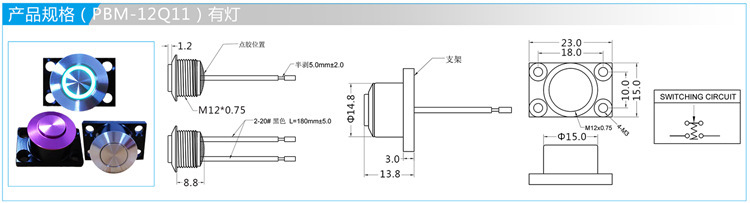

Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V

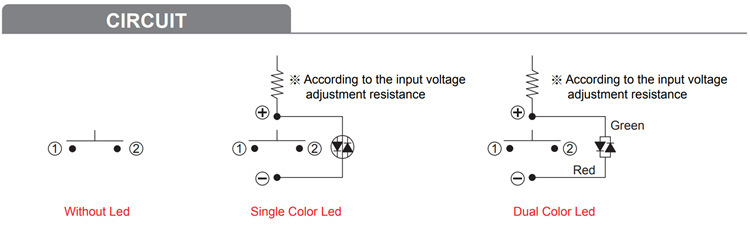

ILLUMINATION BASE RATlNG：
Red， Yellow and Orange：20mA 1.8V;
Blue, Green and White：20mA 2.8V
Beads Color：R/U/G/Y/0/W
SPECIFICATIONS
Panel Thickness: Ø12.20mm
Function:Momentary
Contact Rating: 50mA @ 12VDC.
Mechanical Life: 200,000 cycles
Electrical Life: 50,000 cycles make-and-break cycles.
Torque: 1~3Nm
Travel: About 0.3mm
Operation Pressure: About 1.5N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.
Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -20°C to 85°C
Ingress Protection: IP67
RoHS
MATERIALS
BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy
BASE : PBT, PC
ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy
INNER ASSEMBLY : POM / PA66.
SPRING : Spring steel.
SEALING : Sillicone.
O-Ring : Sillicone
TERMINAL : Brass,with silver or gold plated.
HEX NUT : Nickel plated brass
Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V
ILLUMINATION BASE RATlNG：
Red， Yellow and Orange：20mA 1.8V;
Blue, Green and White：20mA 2.8V
Beads Color：R/U/G/Y/0/W
