2x3x0.6防水轻触开关超小轻触开关防水轻触开关超薄轻触开关

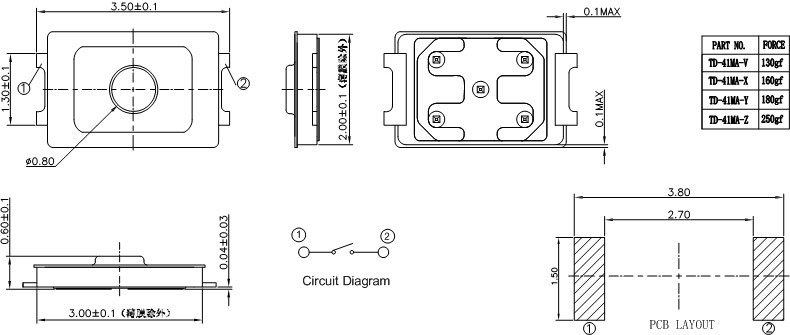

产品编号：TD-41MA-X
联系人：李贵钟
订购热线：13249962028
邮箱：jiateng@dgjiateng.cn
地址：中国广东东莞市石碣镇横滘伟业街9号401室
点击：
详情规格
SWitch:
1.Material/Plated
1.1 Housing:LCP,Black UL 94V-0.
1.2 Terminal:Copper Alloy,Silver Plated
1.3 Spring:Stailess steel,Silver Plated
1.4 PE:PE
1.5 Button:Copper Alloy
1.6 Cap:Stailess steel
2.Electrical Performance
2.1 Rated Voltage: 12V AC
2.2 Rated Current: 20mA
2.3 Contact Resistance: 100m? Max.
2.4 Insulation Resistance: 100MΩ Min.
2.5 Dielectric Strength: 250V AC
3.Mechanical Performance
3.1 Operating Force: 250±50gf
3.2 Travel: 0.25±0.10mm
3.3 Durability: 300,000 Cycles
4.Operating Temperature: -25°C To +85°C
5.WATERPROOF IPX7
1.Material/Plated
1.1 Housing:LCP,Black UL 94V-0.
1.2 Terminal:Copper Alloy,Silver Plated
1.3 Spring:Stailess steel,Silver Plated
1.4 PE:PE
1.5 Button:Copper Alloy
1.6 Cap:Stailess steel
2.Electrical Performance
2.1 Rated Voltage: 12V AC
2.2 Rated Current: 20mA
2.3 Contact Resistance: 100m? Max.
2.4 Insulation Resistance: 100MΩ Min.
2.5 Dielectric Strength: 250V AC
3.Mechanical Performance
3.1 Operating Force: 250±50gf
3.2 Travel: 0.25±0.10mm
3.3 Durability: 300,000 Cycles
4.Operating Temperature: -25°C To +85°C
5.WATERPROOF IPX7
