3.2x4.2x2.5 Tact Switch SMT U型脚 轻触开关TD-88EU
产品编号：TD-88EU
联系人：李贵钟
订购热线：13249962028
邮箱：jiateng@dgjiateng.cn
地址：中国广东东莞市石碣镇横滘伟业街9号401室
点击：
详情规格
Tact Switch
1.Material/Plated

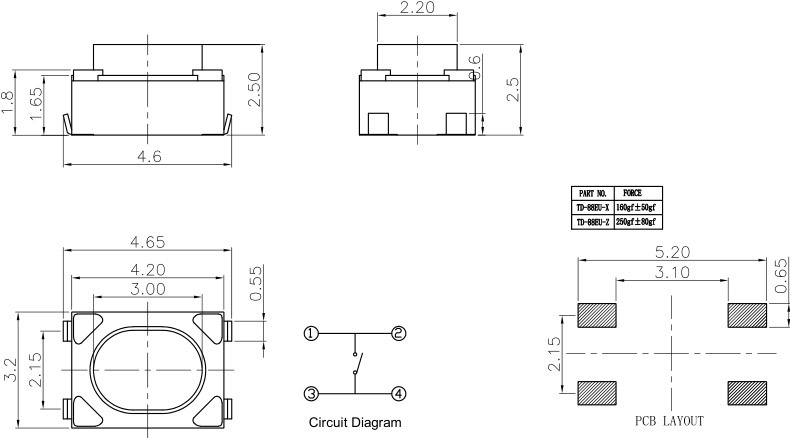

See the drawing
2.Electrical Performance
2.1 Rated Voltage: 12V AC
2.2 Rated Current: 20mA
2.3 Contact Resistance: 100mΩ Max.
2.4 Insulation Resistance: 100MΩ Min.
2.5 Dielectric Strength: 250V AC
3.Mechanical Performance
3.1 Operating Force: See the drawing
3.2 Travel: See the drawing
3.3 Durability: See the drawing
4.Operating Temperature: -25°C To +85°C
